Description

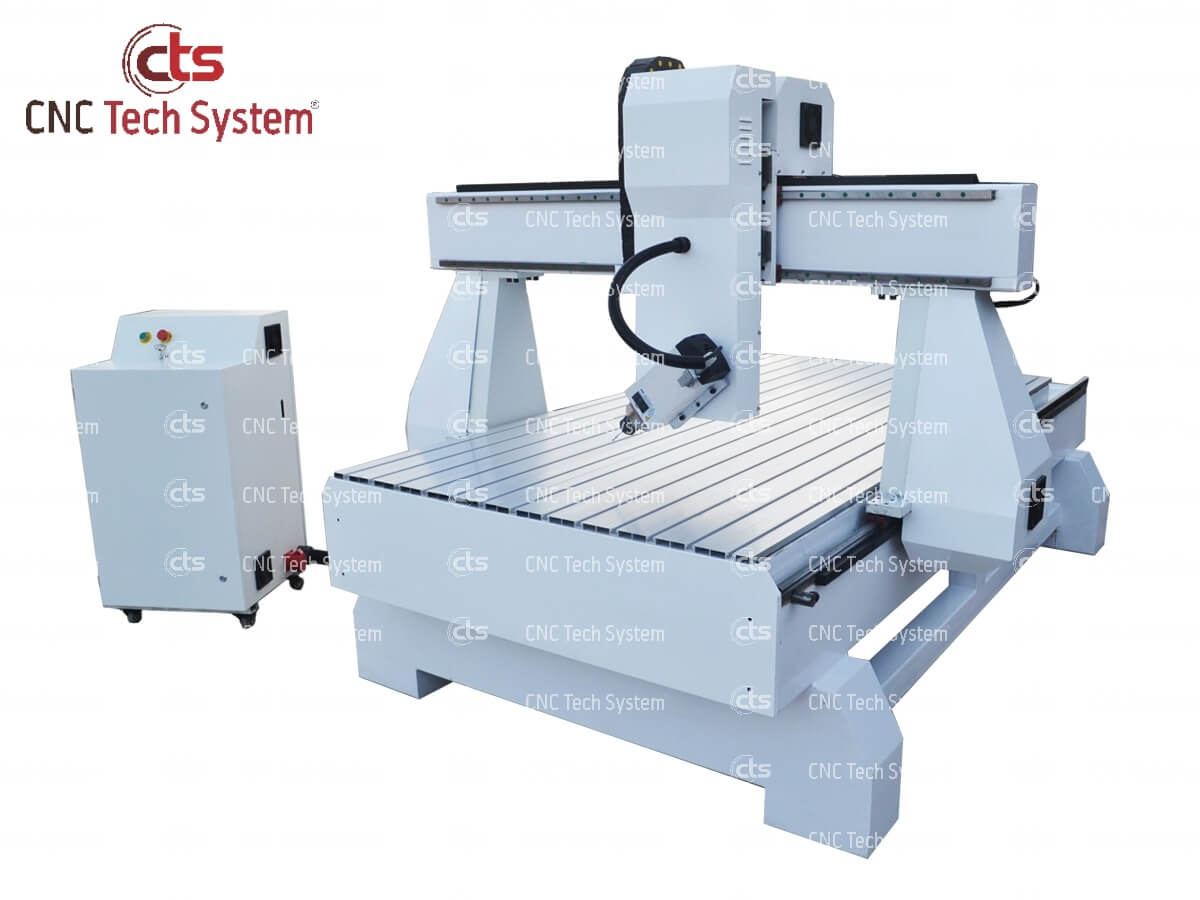

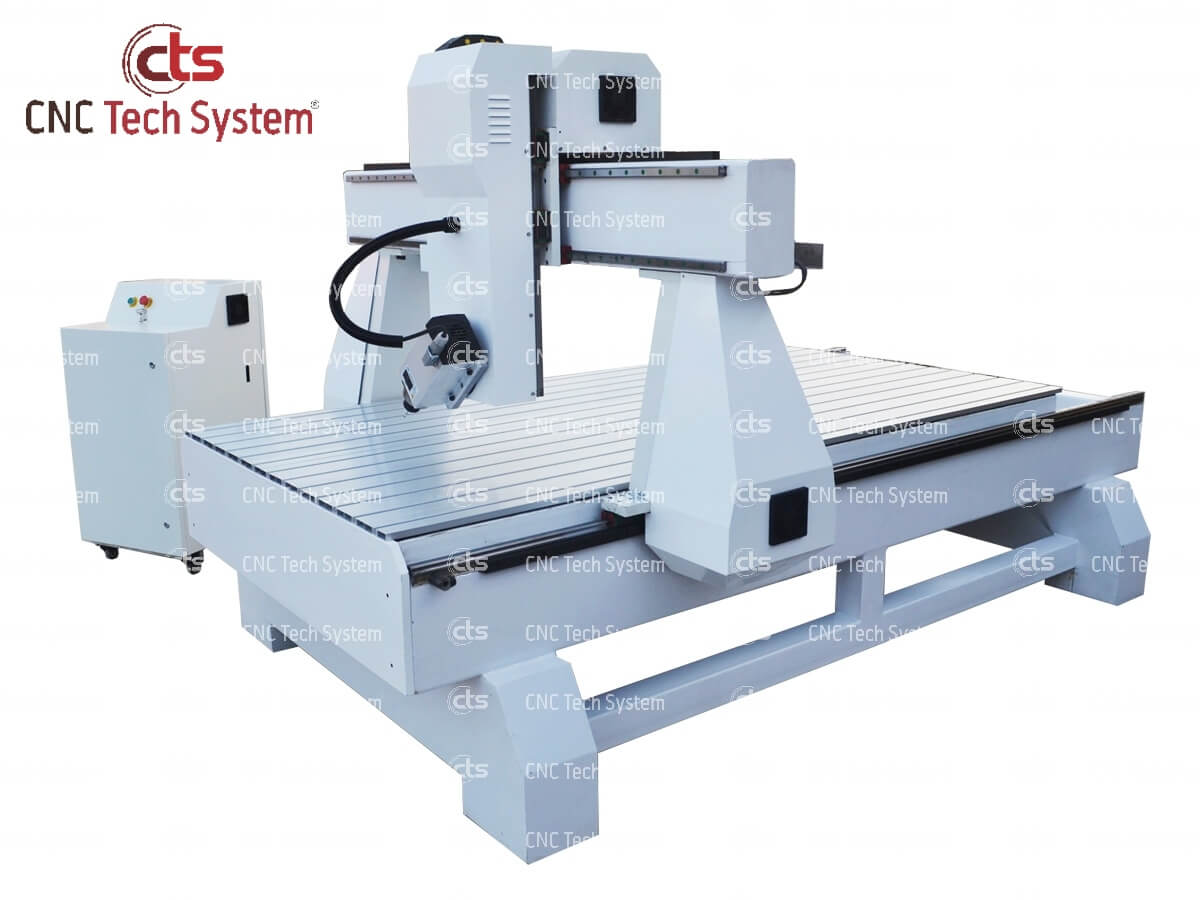

| Model | 1325rh-4 |
| XYZ axis travel distance | 1300x2500x500mm |
| Feeding height | 500mm |
| Table size | 1300*2500mm |
| Spindle power | 4.5kw air cooling(0-18000RPM) |

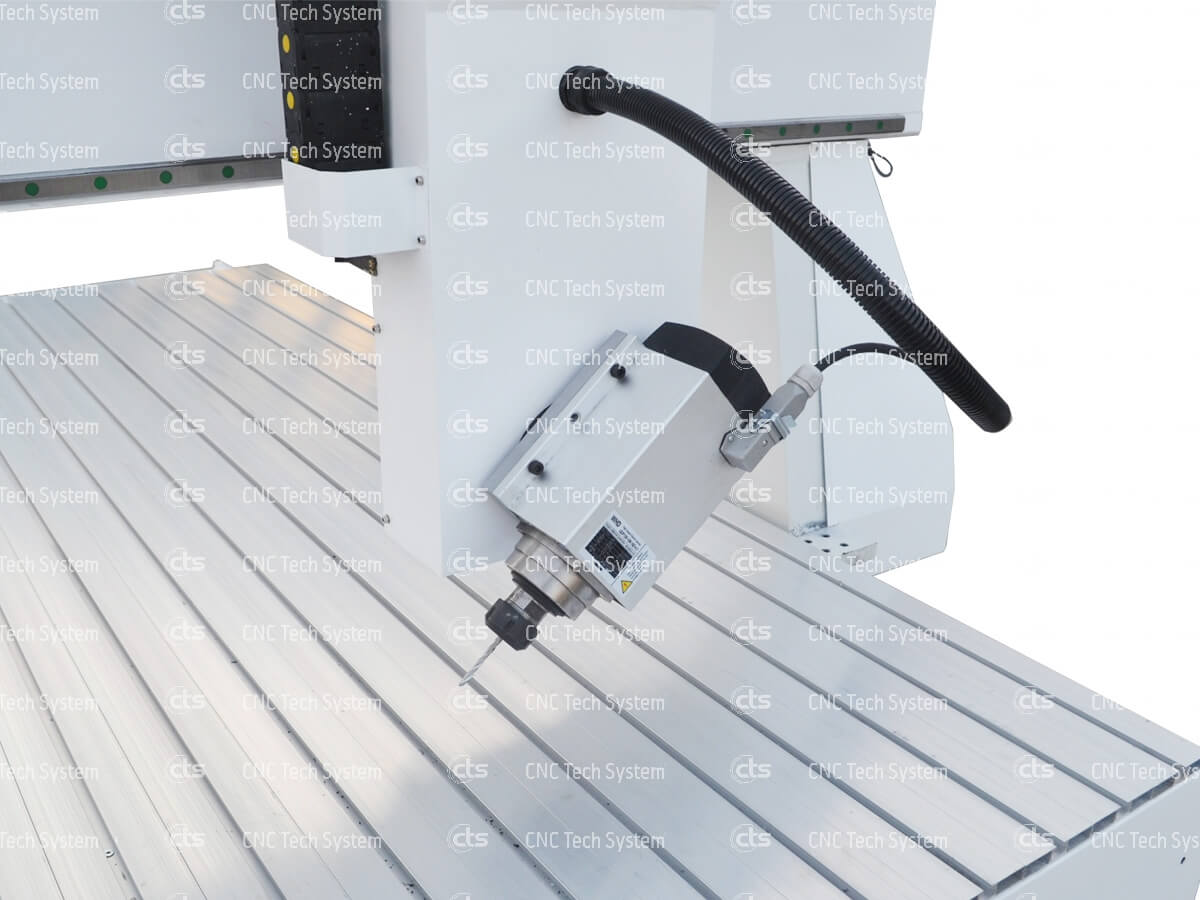

| Rotary head range | ±90° |
| Rail type | 25mm linear rails |
| Control system | Mach3 (4axis version) |
| Drive type | Easy servo |
| Transmit | XY gear rack and Z ballscrew |
| Table type | T slot clamping |
| Max travel speed | 40000mm/min |
| Working precision | 0.05mm |
| Power | AC220V±10% / 50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| Command code | HPGL, G code |
| Machine/packing size | 3.1*2.05*1.8m/3.26*2.2*2.06m |
| Net/Gross weight | 1500kg/1700kg |
| Model | 2012-r2 |
| Max Rotary working diameter | 200mm |
| Max rotary working length | 1200mm |
| Rotary number | 2 sets （3/4 option) |
| Holding way | Chuck (thron option |
| Spindle power | 2.2kw water cooling(0-24000RPM) |
| Control system | Mach3 ( DSP option) |
| Rail type | linear rails |
| Transmit | X Y Oblique gear rack/Z ballscrew |
| Max travel speed | 20000 mm/min |
| Working precision | 0.05mm |
| Power | AC220V±10%/50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| command code | HPGL, G code |
| Machine/packing size | 1.8*1.2*1.42m/1.95*1.34*1.6m |
| Net/Gross weight | 420kg / 500kg |
| Model | 2012-r8 |
| Max Rotary working diameter | 200mm |
| Max rotary working length | 1200mm |
| Rotary number | 8 sets |
| Holding way | Chuck (thorn option) |
| Spindle power | 2.2kw water cooling(0-24000RPM) |
| Control system | Mach3 ( DSP option) |
| Rail type | linear rails |
| Transmit | X Y Oblique gear rack/Z ballscrew |
| Max travel speed | 20000 mm/min |
| Working precision | 0.05mm |
| power | AC220V±10% / 50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| command code | HPGL, G code |
| Machine/packing size | 1.8*1.2*1.42m/1.95*1.34*1.6m |
| Net/Gross weight | 1200kg / 1400kg |
