Description

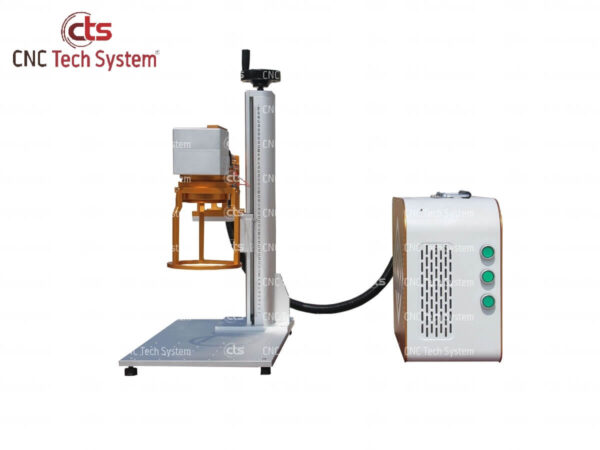

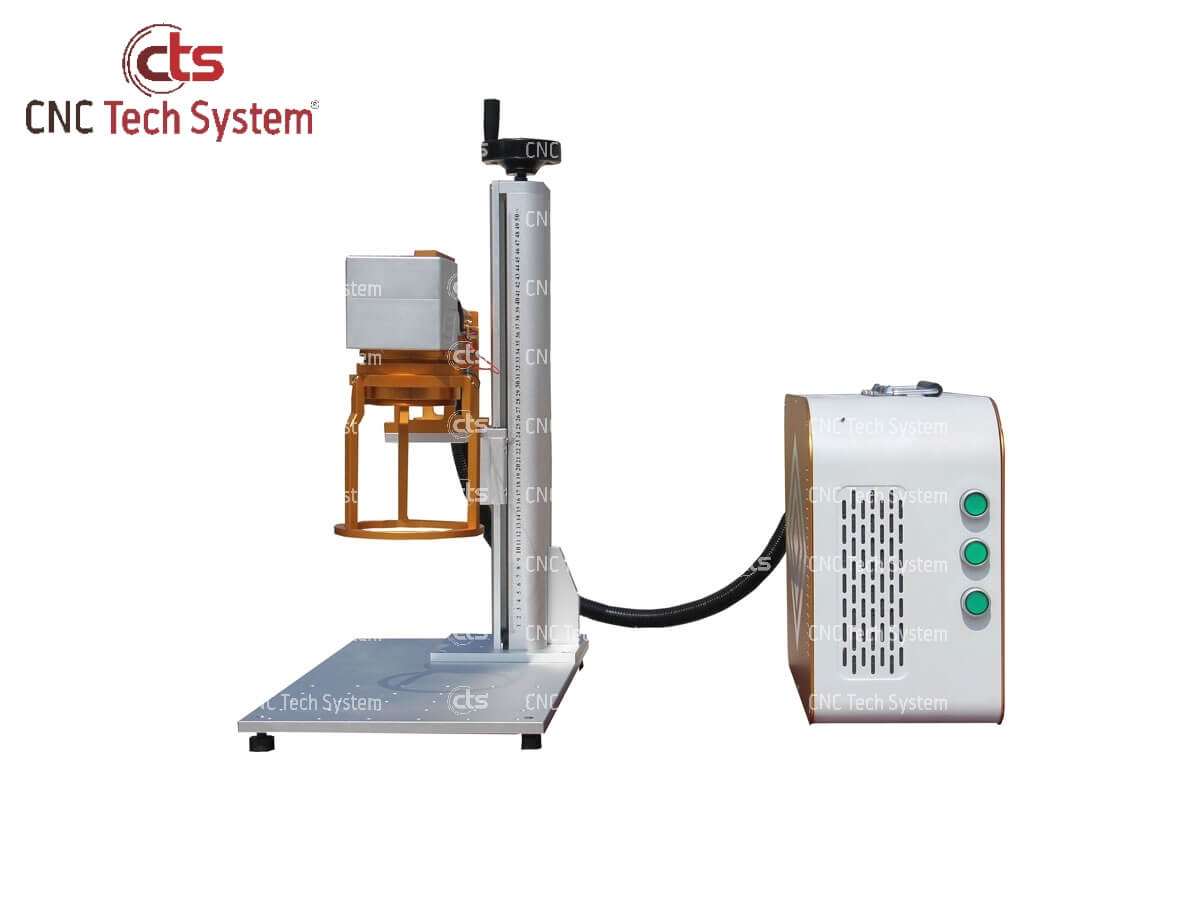

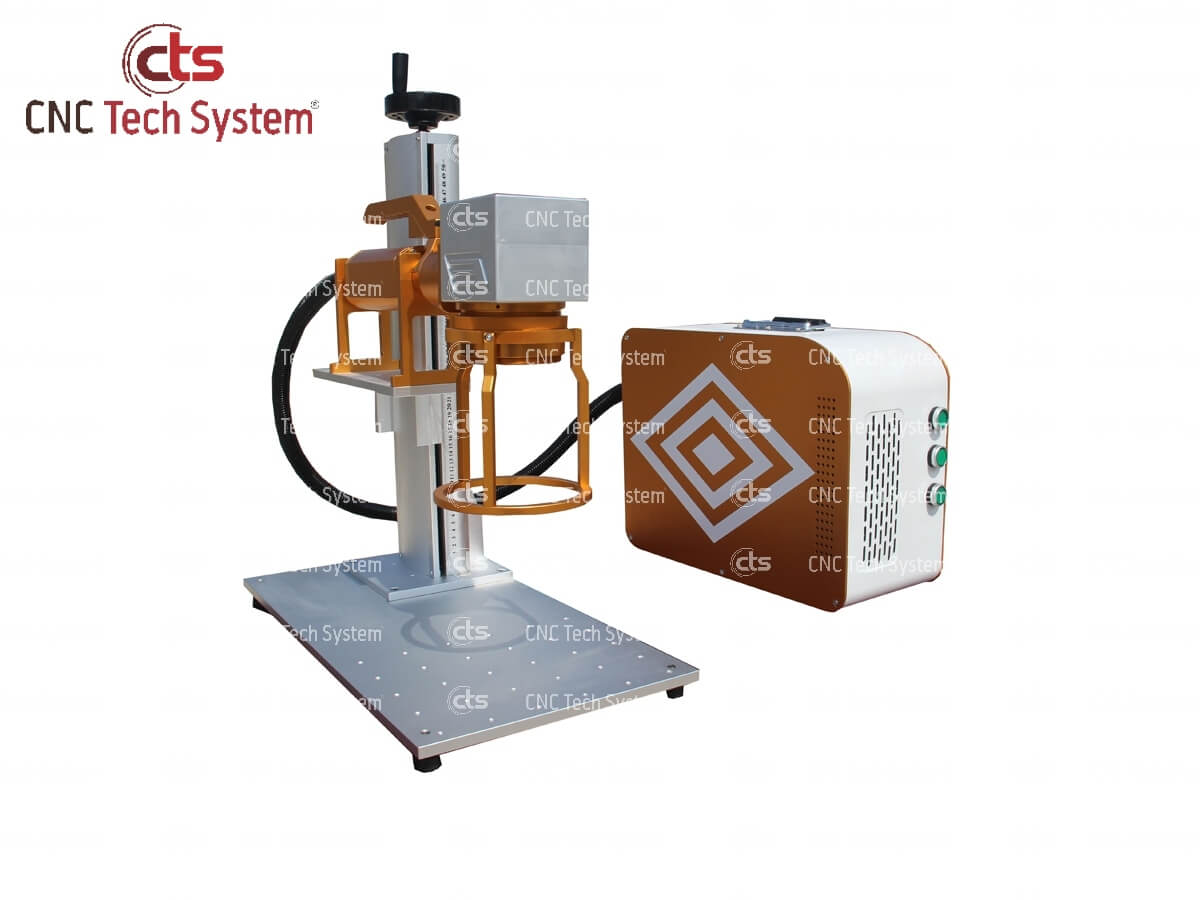

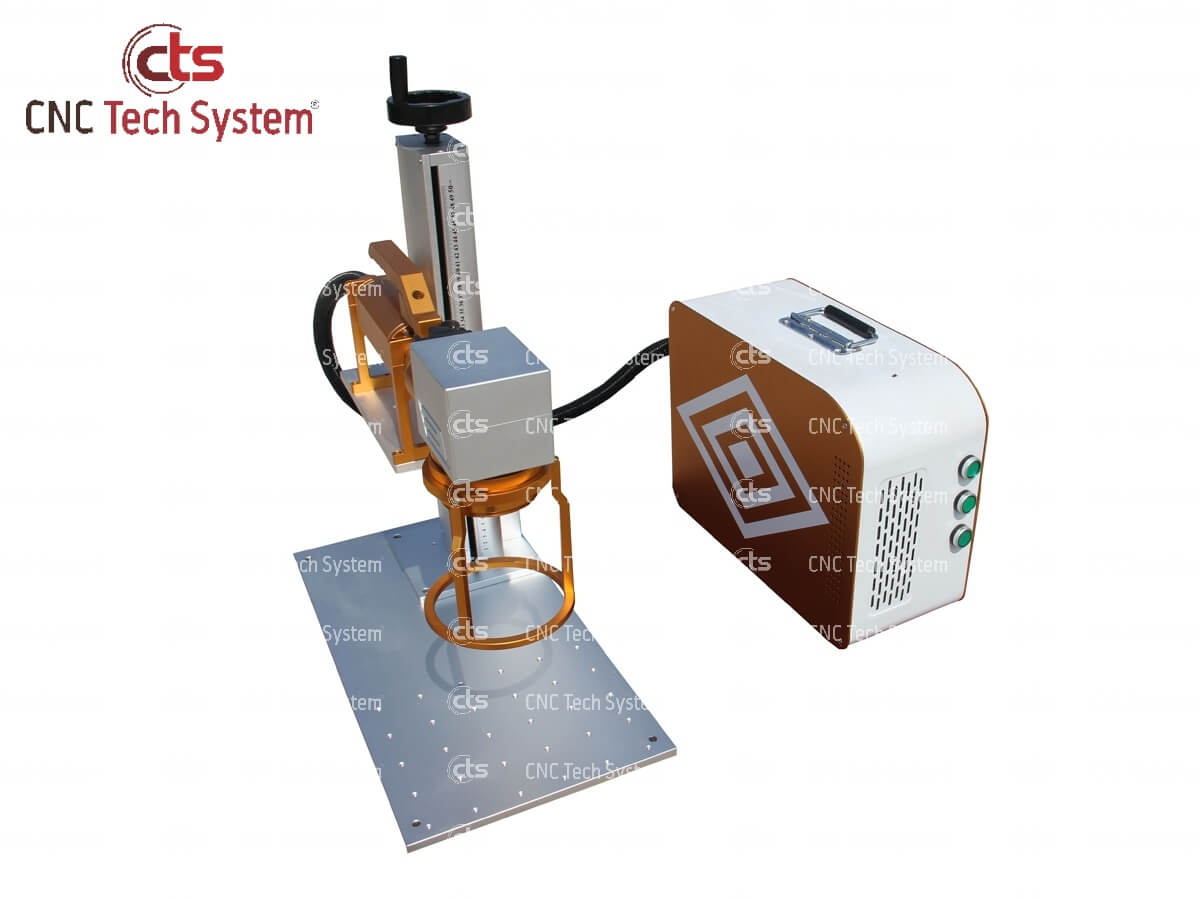

| Model | Handheld |
| Laser type | Fiber Laser |
| Laser power | 10W/20W/ 30W |
| Beam quality | M2< 1.5 |
| Laser wavelength | 1064±1 nm |
| Power adjustment range | 10~100% |
| Output fiber length | 1~2m |
| Frequency of pulse | 20~200KHz |
| Power supply | 110V/60Hz /15A OR 220V/60Hz /8A |
| Cooling system | Air Cooling |
| Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
| EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
| XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
| Working area | 110mm*110 mm(Standard) |
| Can choose | 200mm*200mm/ 300mm*300mm |
| Rotary Device | Can choose |
| Marking depth | <1mm |
| Marking speed | <5000mm/s |
| Min. line width | 0.05mm |
| Repeatability accuracy | 0.003mm |
| Power Machine | 600W |
| Operation temperature | 0~40°C |
| Operation system | Microsoft Windows system |
| Operating environment | Clean and free of dust, focal |
| Model | Mini |
| Laser type | Fiber Laser |
| Laser power | 10W/20W/ 30W |
| Beam quality | M2< 1.5 |
| Laser wavelength | 1064±1 nm |
| Power adjustment range | 10~100% |
| Output fiber length | 1~2m |
| Frequency of pulse | 20~200KHz |
| Power supply | 110V/60Hz /15A OR 220V/60Hz /8A |
| Cooling system | Air Cooling |
| Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
| EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
| XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
| Working area | 110mm*110 mm(Standard) |
| Can choose | 50*50mm, 75*75mm, 150*150mm, 175*175mm, 200*200mm,300mm*300mm |
| Rotary Device | Can choose |
| Marking depth | <1mm |
| Marking speed | <5000mm/s |
| Min. line width | 0.05mm |
| Repeatability accuracy | 0.003mm |
| Power Machine | 600W |
| Operation temperature | 0~40°C |
| Operation system | Microsoft Windows system |
| Operating environment | Clean and free of dust, focal |
| Model | Portable |
| Laser type | Fiber Laser |
| Laser power | 10W/20W/ 30W |
| Beam quality | M2< 1.5 |
| Laser wavelength | 1064±1 nm |
| Power adjustment range | 10~100% |
| Output fiber length | 1~2m |
| Frequency of pulse | 20~200KHz |
| Power supply | 110V/60Hz /15A OR 220V/60Hz /8A |
| Cooling system | Air Cooling |
| Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
| EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
| XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
| Working area | 110mm*110 mm(Standard) |
| Can choose | 50*50mm, 75*75mm, 150*150mm, 175*175mm, 200*200mm,300mm*300mm |
| Rotary Device | Can choose |
| Marking depth | <1mm |
| Marking speed | <5000mm/s |
| Min. line width | 0.05mm |
| Repeatability accuracy | 0.003mm |
| Power Machine | 600W |
| Operation temperature | 0~40°C |
| Operation system | Microsoft Windows system |
| Operating environment | Clean and free of dust, focal |
| Model | Desktop |
| Laser type | Fiber Laser |
| Laser power | 10W/20W/ 30W /50W |
| Beam quality | M2< 1.5 |
| Laser wavelength | 1064±1 nm |
| Power adjustment range | 10~100% |
| Output fiber length | 1~2m |
| Frequency of pulse | 20~200KHz |
| Power supply | 110V/60Hz /15A OR 220V/60Hz /8A |
| Cooling system | Air Cooling |
| Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
| EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
| XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
| Working area | 110mm*110 mm(Standard) |
| Can choose | 50*50mm, 75*75mm, 150*150mm, 175*175mm, 200*200mm,300mm*300mm |
| Rotary Device | Can choose |
| Marking depth | <1mm |
| Marking speed | <5000mm/s |
| Min. line width | 0.05mm |
| Repeatability accuracy | 0.003mm |
| Power Machine | 600W |
| Operation temperature | 0~40°C |
| Operation system | Microsoft Windows system |
| Operating environment | Clean and free of dust, focal |
